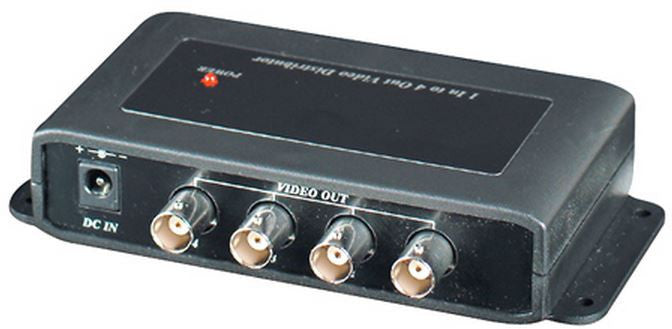

SEESTATION CD104 Single Input to 4 Output Video Splitter / Distributor (BNC)

SEESTATION CD104 Single Input to 4 Output Video Splitter / Distributor (BNC)

$34.00 USD
$45.90 USD $34.00 USD
Sale Sold out

PN / SEE-CD104 *
1 Input to 4 Output Video Splitter / Distributor (BNC)
(power adapter included)

Product ID: CD104

1 Input 4 Output Video Distributor

Specifications:

CD104 is a video distributors with one or multi video input to multi output. It is suitable for different floor in a building or different electrical field.

Features:
  • Red LED: power on/off.
  • It can be connected video camera, multiplexer, VCR, DVR…etc.
  • Power supply included.
ITEM NO. CD104
Video Input Channel 1
Video Output Channel 4
Video Input Level 0.8~1.2Vp-p, 75 Ohms
Video Output Level 1Vp-p (Standard), 75 Ohms
Video Bandwidth 10hz - 10MHz
Power Supply DC12V 500mA / AC24V
Power Consumption 100mA
Dimensions   W x H x D mm 138x86x29.5
Temperature Operation: 0 to 55°C,  Storage: -20 to 85°C
Humidity Up to 95%
Weight        g 115
Material ABS Black
