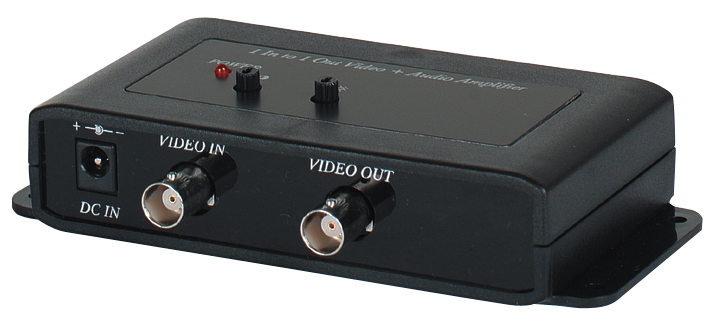

SEESTATION CA101 1 Input to 1 Output Video Amplifier
SEESTATION CA101 1 Input to 1 Output Video Amplifier
Regular price
$29.00 USD
Regular price
$40.00 USD
Sale price
$29.00 USD
Unit price
/
per
Couldn't load pickup availability
PN / SEE-CA101 *
1 Input 1 Output Video Amplifier
Power Adapter Included
Specifications:
- Video Input Channel: 1, Video Output Channel: 1
- Video Input Level: 0.8~1.2Vp-p, 75 Ohms
- Video Output Level: 1Vp-p (Standard), 75 Ohms
- Video Bandwidth:10hz - 10MHz
- Power Supply: DC12V
- Power Consumption:100mA
- Dimensions (mm): 138x84x28
- Weight: 110 g
- Materia: ABS Black
Features:
- Wide bandwidth, video gain compensation amplification.
- HF compensation.
- 10dB adjustable image gain.
- Sharpness and Brightness adjustment.
- Transmission range: 1000 meters (RG59 coaxial cable)
- Red LED: power on/off.
- It can be connected video camera, multiplexer, VCR, DVR…etc.
