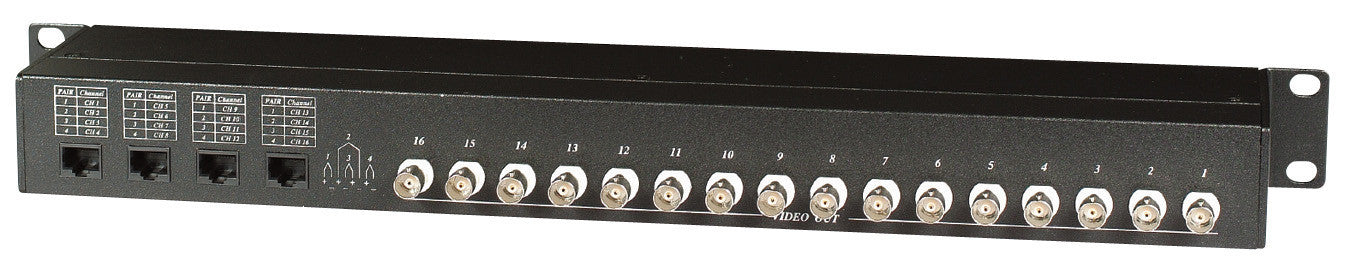

SEESTATION TPP016-RJ45 Port Passive Transceiver Hub, Extra Interference Rejection, RJ45 Connection
PN / SEE-TPP016-RJ45 *
Product ID: TPP016-RJ45
16 Port Passive Transceiver Hub, Extra Interference Rejection, RJ45 Connection
- Video Input Port: 4 x RJ45
- Video Output Port (BNC Connector): 16 Port, 1Vp-p, 75 ohms
- Recommend Cable: CAT 5 Cable 4 Pairs (24 AWG)
- Dimension W x H x D mm: 482x170X44 (1U)
- Weigh: 2200g
- Material: Metal Black
- Identical same as TPP016, but using RJ45 connector instead of terminal block
- 16 BNC connector for video output, 4 x RJ45 connector for 16 channel video input.
- Use with TTP414V or use with TTP111VPD-RJ45+TDP016 for a professional RJ45 cabling solution.
- Built in a highly balanced mode of video transmission for extra interference immunity
