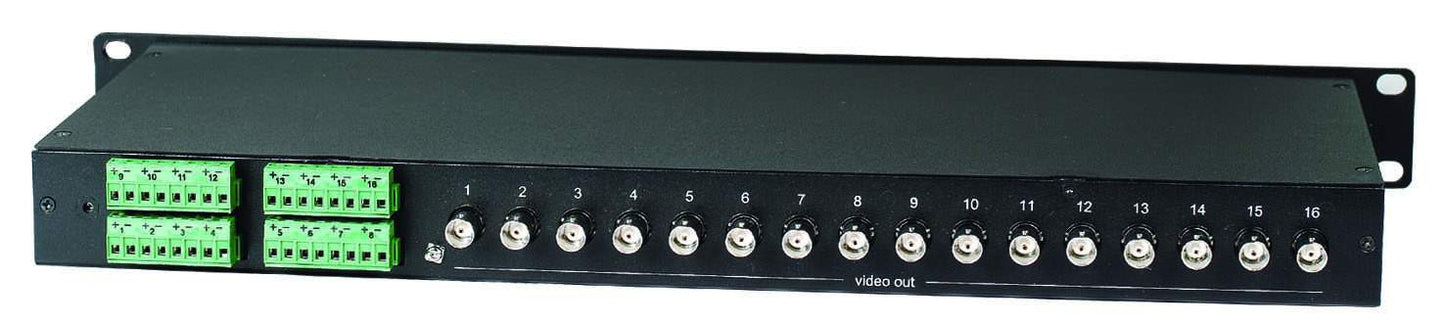

SEESTATION TPP016GB 16 Port Passive Video Transceiver Hub Built in Ground Loop Isolator

Specifications:

• Video Input Port: 16 Port (Terminal Block)
• Video Output Port (BNC Connector): 16 Port, 1Vp-p, 75 ohms
• Insertion Loss < 0.5dB
  • Bandwidth :20Hz -11MHz, +0/-3dB
  • Input Resistance: 75 ohm
  • Output Resistance: 75 ohm
• Ground loop rejection >90dB @>50Hz
  • Isolation Voltage: 600VDC (Min)
  • Insulation Resistance: 100m Ohm
  • Transient Voltage Suppressors: 12 Vrms
• Recommend Cable: CAT 5 Cable 4 Pairs (24 AWG)
• Dimension: W x H x D mm: 482x170X44 (1U)
• Weigh: 3500g
• Material: Metal Black

Features:

• Built in 16 port passive transceivers in 1U 19” rack mounting panel.
• As a rack mounting passive transmitter hub, use with active receiver at distance up to 1000 meters.
• Passive, no power required.
• Built in a highly balanced mode of video transmission for extra interference immunity.
• Built in Hi Performance Ground Loop Isolator at each channel.
  • Low video loss, Bandwidth: 20hz -11Mhz ,+0/-3Db
• Prevents video-signal distortion caused by video ground loops.
  • Eliminates picture tearing, cross talk and rolling.
  • Prevents power cables laid by others interfering with the CCTV system.
