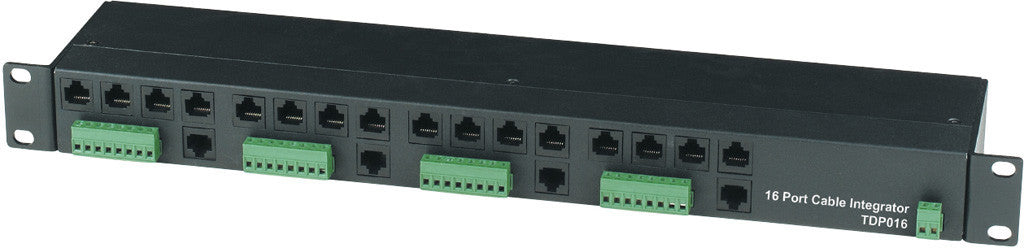

SEESTATION SEE-TDP016 16 Port Cable Integrator (Video, Power, Data) In 1U Rack Mounting Panel
PN / SEE-TDP016 *
16 Port Cable Integrator (Video, Power, Data) In 1U Rack Mounting Panel
- Video Input Port:16 Port (Terminal Block)
- Video Output Port 16 Port, 1Vp-p, 75 ohms
- Data Input Port: 1 Port (Terminal Block)
- Data Output Port 16 Port (Terminal Block)
- Recommend Cable: CAT 5 Cable 4 Pairs (24 AWG)
- Operating Temperature:-20 ～70°C
- DimensionW x H x D mm:482x105X44 (1U)
- Weight: 1100g
- Material: Metal Black
- 16 x RJ45 connector for video input + power output + data output.
- 4 x RJ45 connector for video output, 4 x 8 pin terminal for power input, 1 x 2 pin terminal for data input.
- Built in Surge Protection on Data.
- 16 cameras cable termination panel, use for integrating power, video and data signals onto 4 x RJ45 4 pairs UTP cable.
- Individual power input, could send different power voltage based on camera power consumption and transmission range.
- Use with TTP111VPD-RJ45 video,power, data transceiver at the camera side.
- Use any third-party power supply to power cameras via UTP over (See below “power distance chart”).
- Use with TTP016-RJ45 as video transceiver receiver at control room.
- Perfect cable management solution from the camera to the wiring station, control room
