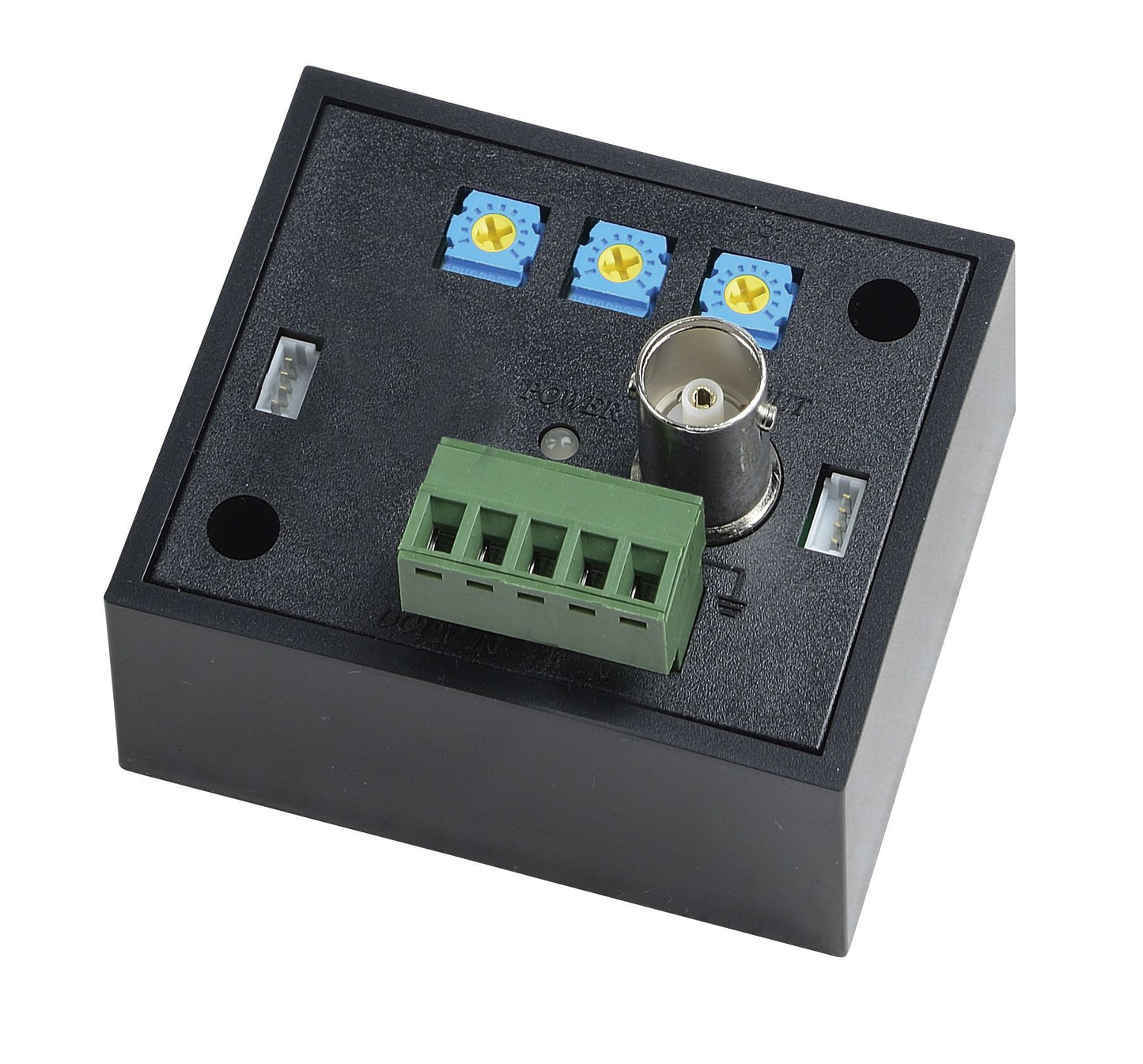

SEESTATION HD-TVI/HDCVI/AHD UTP Active Receiver
SEESTATION HD-TVI/HDCVI/AHD UTP Active Receiver
Regular price
$50.90 USD
Regular price
$94.50 USD
Sale price
$50.90 USD
Unit price
/
per
Couldn't load pickup availability
PN / SEE-TTA111HDR *
Specifications:
Video Format: HD-TVI, HD-CVI
Video Input: 5 pin removable terminal x 1 (100 Ω)
Video Output: BNC x 1 (75 Ω，1 Vp-p)
Cable: UTP CAT5e/CAT6
Transmission Distance: AHD / HDCVI：400M @ 1080p，HD-TVI：300M @ 1080p
Power Supply: DC 12V 500mA
Power Consumption: 150mA(Typical), 220mA (Max)
Temperature: Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%
Dimensions W x H x D mm: 57.8 x 49.2 x 43.7
Weight g: 70
Specifications:
- HD-TVI, AHD, HDCVI UTP active receiver.
- To work with passive transmitter TTP111HD for good quality picture.
- Supports HD-TVI 1080p/720p 300M.
- Supports HDCVI 1080p/720p 400M.
- Supports AHD 1080p/720p 400M.
- Works with HD-TVI, AHD, HDCVI UTP active transmitter for longer distance.
- Built in middle frequency, high frequency and brightness adjustment.
- Allows using one power adapter for multiple amplifiers, a jumper is needed to extend power. ( Max of 5 units per power adapter)
- Package includes a jumper and power adapter.
- Optional model: TPN008 19” 2U rack mounting panel to fit 8 pieces TTA111HDR.
Video Format: HD-TVI, HD-CVI
Video Input: 5 pin removable terminal x 1 (100 Ω)
Video Output: BNC x 1 (75 Ω，1 Vp-p)
Cable: UTP CAT5e/CAT6
Transmission Distance: AHD / HDCVI：400M @ 1080p，HD-TVI：300M @ 1080p
Power Supply: DC 12V 500mA
Power Consumption: 150mA(Typical), 220mA (Max)
Temperature: Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%
Dimensions W x H x D mm: 57.8 x 49.2 x 43.7
Weight g: 70
