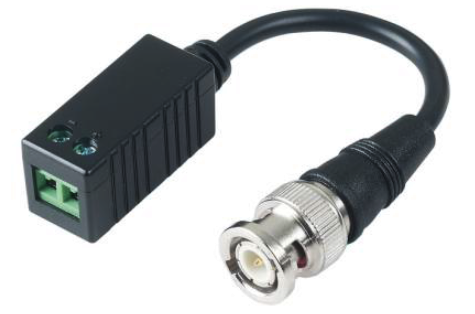

SEESTATION TTP111HDL HD Video Transceiver with 10cm pigtail for HD-CVI, TVI, & AHD (Each)
PN / SEE-TTP111HDL *
- Priced & Sold Each
- To send HD-CVI, HD-TVI, AHD camera 720p/1080p up to 300 meters .over UTP Cat5 Cable.
- BNC male to screw terminal for easy connection.
- Compact and mini size, could mount multiple units behind multiplexer, Quad, DVR..etc
- Passive, No power required.
- Eliminate Coaxial Cable.
- To work with Active transmitter TTA111HDT, Active receiver TTA111HDR for extra long distance transmission.
ITEM NO. SEE-TTP111HDL
|Video Input / Output Terminals||BNC MALE (75Ω、1V p-p)|
|Video Input / Output Terminals||TERMINAL BLOCK|
|Bandwidth||50Hz ~ 47MHz (-3dB)|
|Transmission Distance||720p 300M, 1080p 200M (Max)|
|Temperature||Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%|
|Dimension mm||14.5 × 15.5 × 145, include 100mm mini coax cable|
