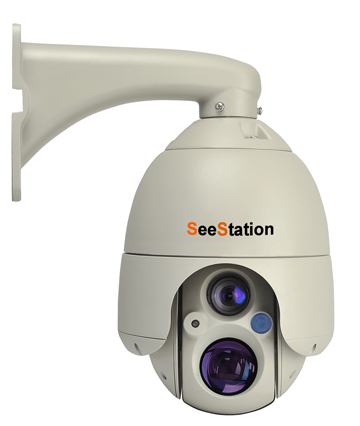

SeeStation C4460AV4 PTZ Dome Camera Outdoor 540TVL 36 x Zoom Auto Iris 24VAC

SeeStation C4460AV4 PTZ Dome Camera Outdoor 540TVL 36 x Zoom Auto Iris 24VAC

Regular price $1,657.14 USD
Regular price $2,237.14 USD Sale price $1,657.14 USD
Sale Sold out
PN / SS-C4460AV4-36X *
SeeStation C4460AV4 PTZ Outdoor 540TVL 36 x Zoom Auto Iris 24VAC
FEATURES:
• 6” PTZ high speed dome camera with IR LED array
• GENUINE SONY ZOOM CAMERA MODULE
• Guarantees better image and avoids “Flashlight Effect”
• Advanced 32bit ARM CPU
• Larger storage capacity, higher speed
• 2 ID(soft ID &hard ID)available, more convenient
• Factory default setting available in OSD menu
• 360° Continued rotation Tilt Range
• 0°~90° Manual pan speed 0.1~180°/S
• Manual tilt speed 0.1~120°/S
• Preset speed 180°/S
• Preset Accuracy ±0.10° with 128 preset points
• 4 Privacy zone masking
• 8 Operation sector zone display
• 6 Groups pattern(pan/tilt/zoom)
• 7 Groups vector scan groups
• Intelligent blower and heater system
• work temperature-40℃~60℃
• IR illuminator with ability to auto change angles
• According to the viewing angle of vari-focal TV lens as it changes
• Long night vision range
• People identifiable at 150 meters in the dark (@Sony480 optical x18)
• Clear picture, DC12V, 5A
• At far and near sight with no “fish eye”
• No “ghost” effects at any viewing angles
• Low power consumption (less than 5W)
• PELCO D/P, DYNACOLOR, ULTRACK
• VICON protocols are available
• Long life expectancy
• 5-10 times longer life than that of a traditional LED
• IP66 waterproof
• Beautiful casing design

Specifications:
Image Sensor - 1/4 Inch, Double Density Interline Transfer CCD
Effective Pixels - PAL: 752(H) x 582(V); NTSC:768(H) x 494(V)
Horizontal Resolution - Color: 560TV Lines B/W: 680 TV Lines
Min. Illumination - 0.2Lux/F1.6(50 IRE):color/0.02 Lux/F1.6(50 IRE):B/W
Optical Zoom Lens - 37X, f=3.5 to 129.5mm(F1.6~F3.9)
Digital Zoom - OFF/ON (X2 ~ X16)
White Balance - Auto, ATW, Indoor, Outdoor, One-Push, WB, Manual WB
Wide Dynamic Range - OFF / ON
Image Stabilizer - Null
Noise Reduction SSNR
Motion Detection On/Off
B.L. Compensation OFF / BLC / HLC / WDR Selectable
Day & Night Auto, COLOR, B/W(Auto IR-Cut)
Luminary Infrared fixed-focus lamp Infrared zoom lamp
Night Vision Distance 150M
Lamp Control Auto, Manual, by Zoom
CPU Type 32 bit ARM CPU
Address 0~255(software address and hardware address)
Pan Range 360° continued rotation
Tilt Range 0℃~90°
Manual Pan Speed 0.1~180°/s
Manual Tilt Speed 0.1~120°/s
Preset Speed 180°/s
Preset Accuracy ±0.10°
Preset Points 128
OSD language Multi-language Chinese , English, Spanish etc.
OSD Display Dome menu & camera menu adjustment
Zone Masking 24 privacy zones for Sony module
Status Display Function display during operation
Lens Position Display Crosshair display the lens position
Sector Zone Display 8 Programmable Zones
Home Position Auto tour and scan
Operation Recall Recall operation zone
Vector Scan Groups 7 Programmable (Dwell time speed preset point and embed
vector scan or PTZ tours)
Comm Protocol - Multi-protocol Pelco D/P /DYNACOLOR/ULTRAK/VICON/(may add more)
Scan - Intelligent Three Dimensional Scan. Auto Pan & Tilt & Zoom /Manual
Pattern Group - 6 Programmable(Pan/Tilt/Zoom )
Intelligent Long Focus Speed Limited - all different speed of long-focus
Intelligent Power Off Real Time Memory - Automatic save functions setting ,automatic wake up tour function
Return Preset Position - Settable of the time of return preset position
Manual Continued Auto Scan - Non-limited position of manual continued Auto scan
IP Level - IP66
Work Temperature - –40℃~60℃
Work Humidity - 0%~90% (Non condensing)
Power - DC12V/5A
Communication - RS-485
Connection - BNC
